CTP SYSTEM – AGFA, DOTLINE, NELA

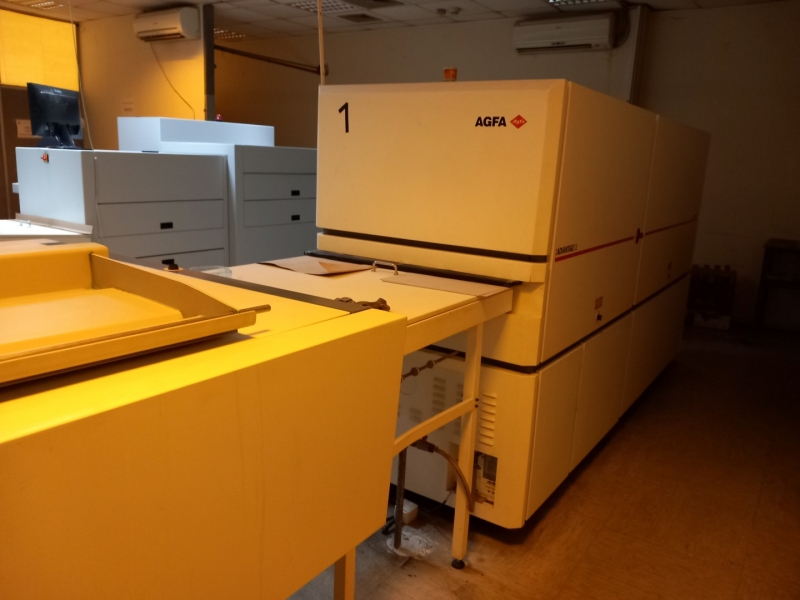

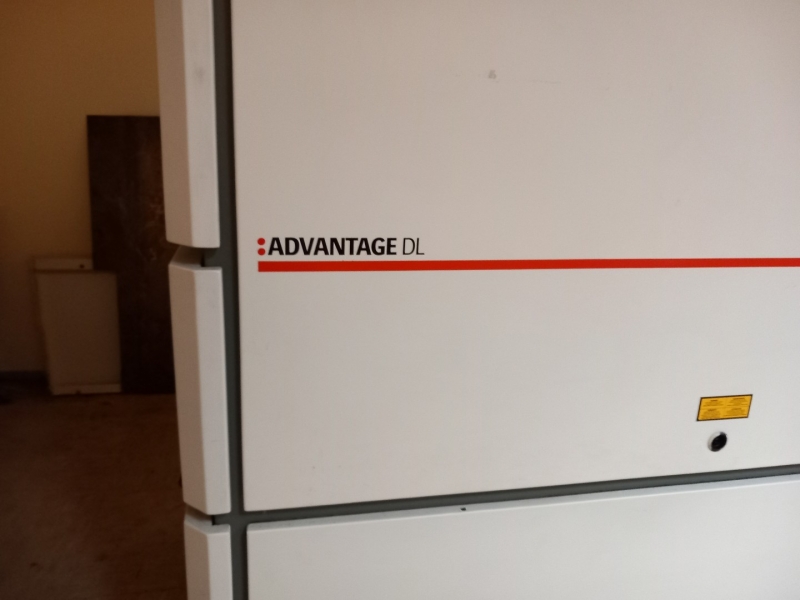

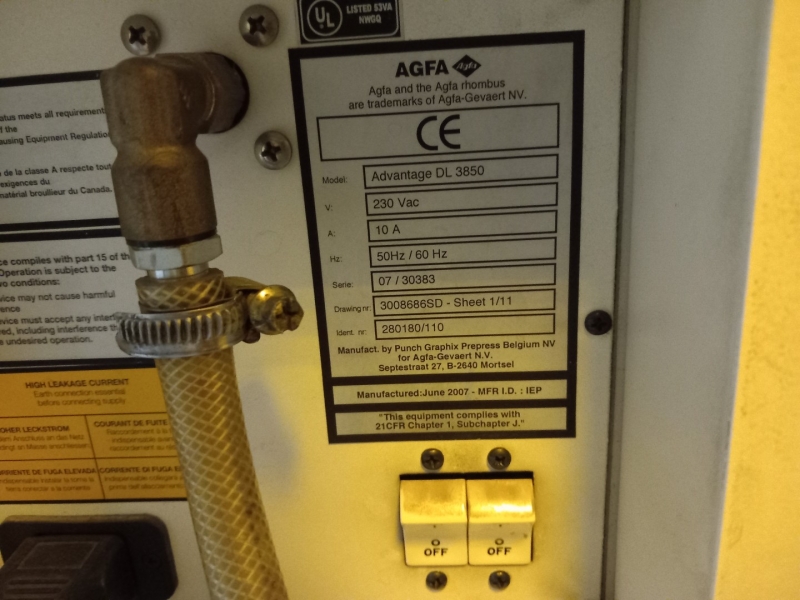

1*CTP AGFA – Illuminator AGFA Adventage DL-3850 and Developer AGFA-VXP-85

Manufacturer: AGFA

Model: Advantage DL-3850

Year: 2007

Serial: 07/30383

Nominal voltage: 230 V 50-60 Hz

Nominal current: 10 A

CTP Illuminator AGFA Advantge DL 3850 - serves for illuminating CTP offset photopolymer printing plates.

Dimensions of printing forms: 0.78m x 0.600m and 6-0.600 x 0.39m

The maximum speed of the illuminator is 100 plates of a larger format per hour, or 200 plates of a smaller format per hour.

UV light with a wavelength of 405-410 nanometers is used for illumination.

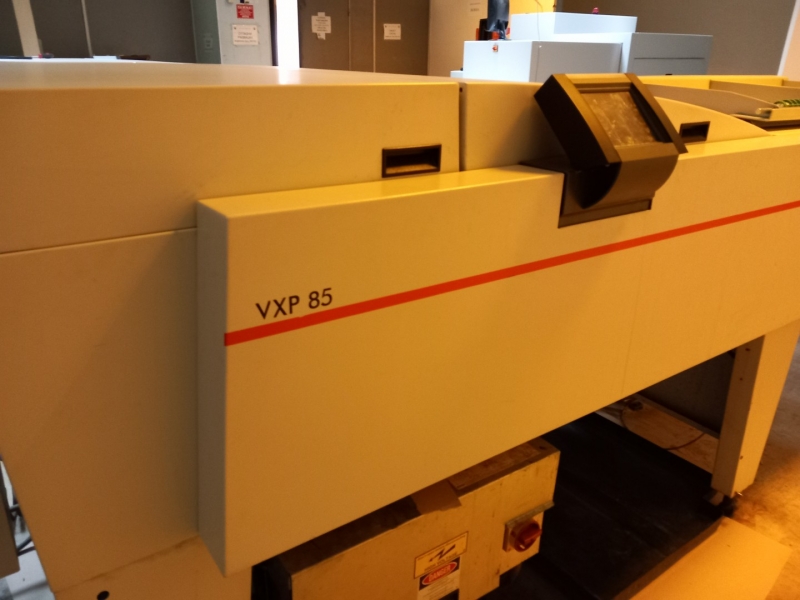

1a*CTP developer AGFA VXP 85

It  is used to develop illuminated offset photopolymer CTP printing plates.

The speed of operation is synchronized with the operation of the illuminator.

Serial: N.93805-0021

Model: 85HDX

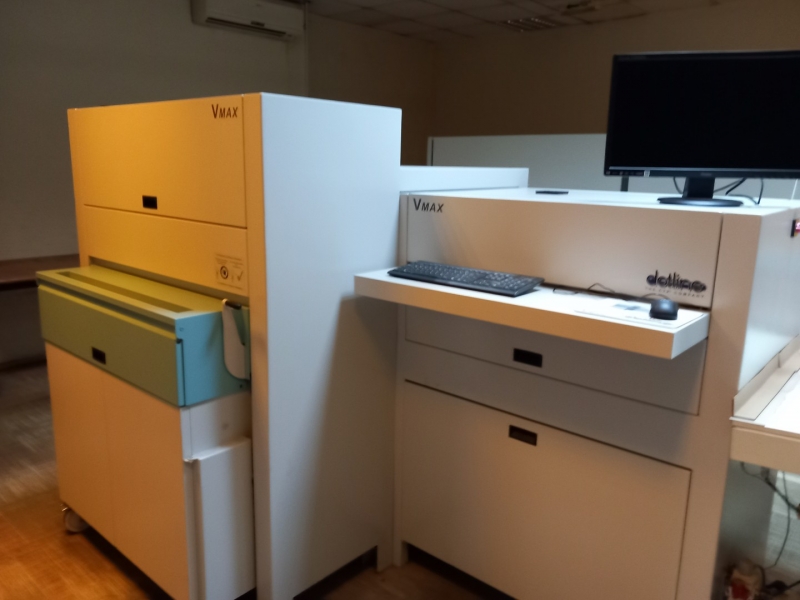

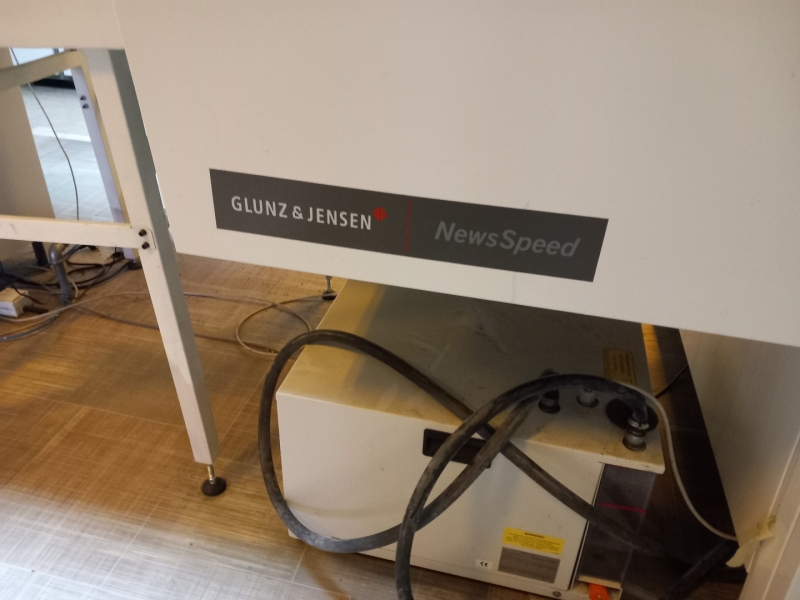

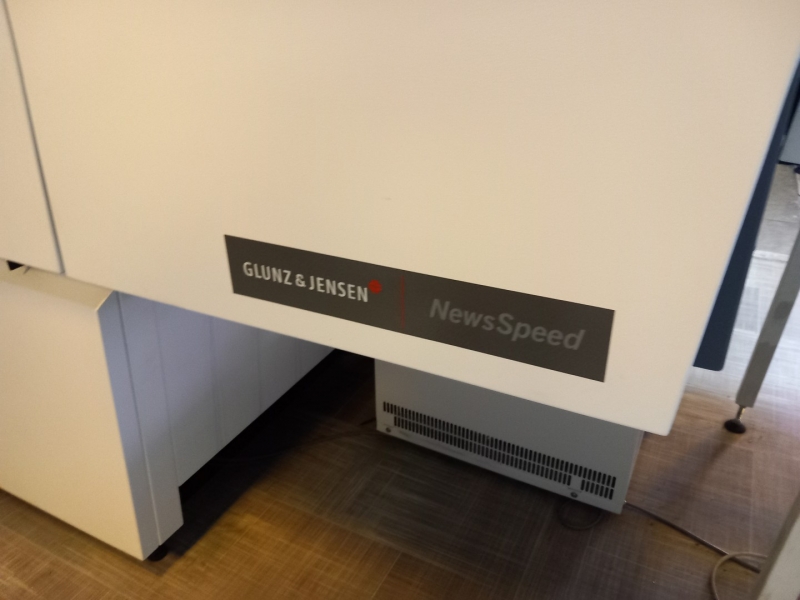

2*DOTLINE CTP Vmax 220 FAP, with Glunz & Jensen Offset Plate Processor

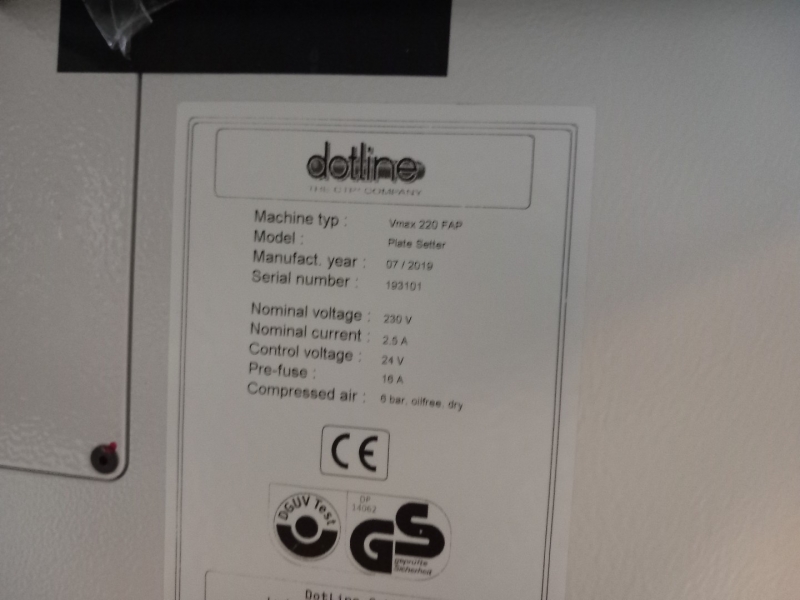

Manufacturer: DOTLINE

Type: Vmax 220 FAP

Model: Plate slater

Year: 07/2019

Serial: 193101

Nominal voltage: 230 V

Nominal current: 2.5 A

Control voltage: 24 V

Pre-fuse: 16 A

Compressed air: 6 bar

The plate format is the same as Agfa and the plates are developed using chemical developers.

The plates are Violet.

The development speed is 100 plates of a larger format per hour, or 200 plates of a smaller format per hour

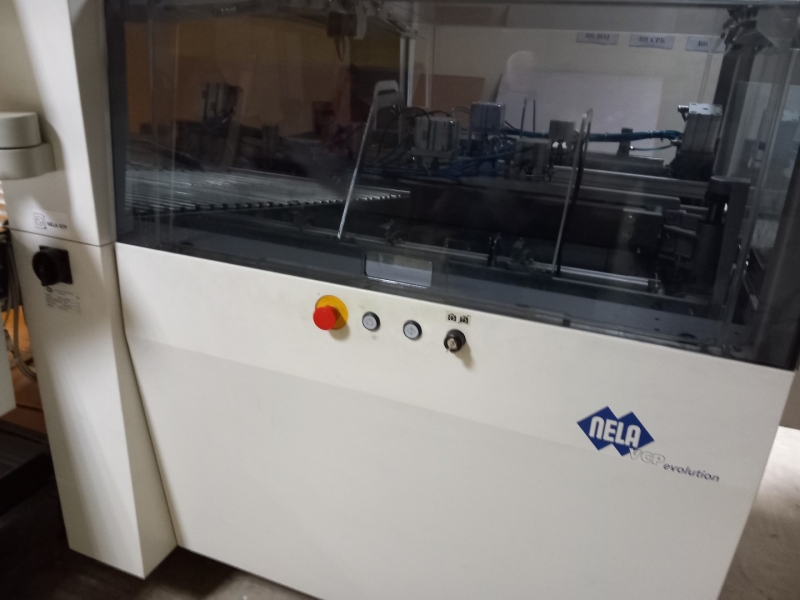

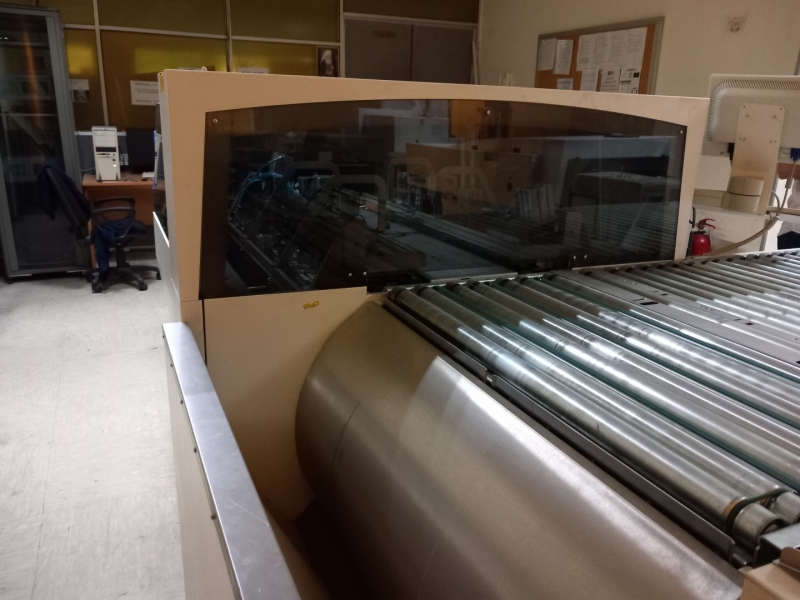

3*CTP – NELA

System 2 - NELA is part of the CTPa system - Illuminator, developer and NELA

It is used for creasing, punching and bending the printing form according to pre-set criteria.

The speed of operation depends on the speed of the CTP device

Manufacturer: NELA Bruder NeumeisterGmbH

Model: VCPevo 1225/3/N/PE/AC

Pressure: 6 bar

Power supply: 400V 50Hz

Year: 2007
