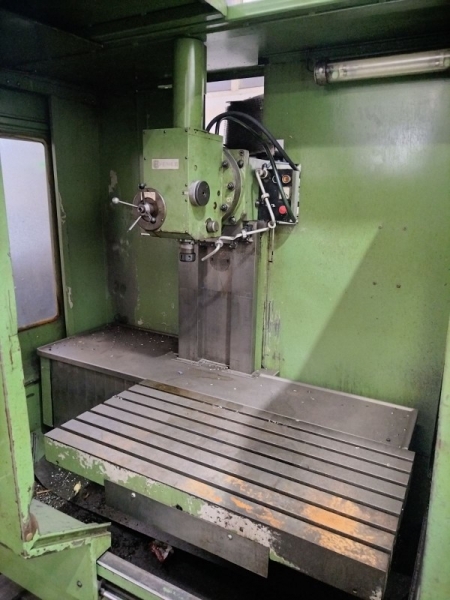

CNC Universal Milling Machine

HERMLE UWF1000

Basic features:

Machine type: CNC universal milling machine

Manufacturer: Hermle, Germany

Year of manufacture: 1991

Model: UWF 1000 CNC

Control unit: Heidenhain TNC 355

Configuration: 3 axes (X, Y, Z)

Working strokes of axes:

X axis (longitudinal): 800 mm

Y axis (transverse): 500 mm

Z axis (vertical): 500 mm

Workbench:

Table dimensions: about 1000 x 500 mm

Max. load: approx. 500 - 700 kg

Main spindle:

Spindle taper: SK 40 (DIN 69871)

Speed range: 40 - 3000 rpm

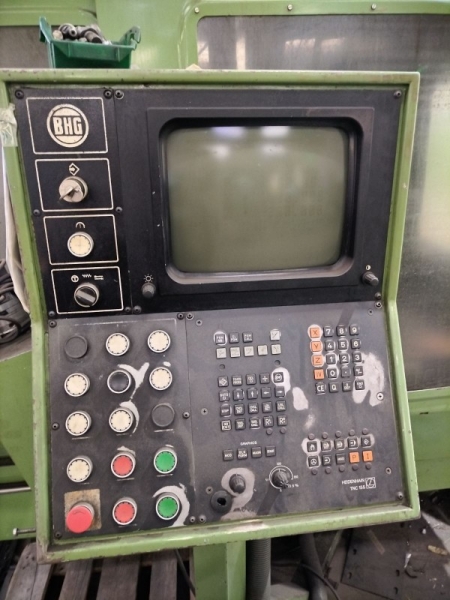

CNC control:

Controller: Heidenhain TNC 355

Manual control: Electronic hand wheel (HR)

Programming: ISO G-code or Heidenhain dialog

Features: Designed for 3-axis milling, manual head rotation ±90°, plus head removal and horizontal milling capability

Other features:

Lubrication: Centralized automatic

Weight: approx. 3000 kg

Power supply: 400V / 50Hz, three-phase

The machine is in good condition
